Vehicle Compatibility
DESIGNED FOR BMW VEHICLES

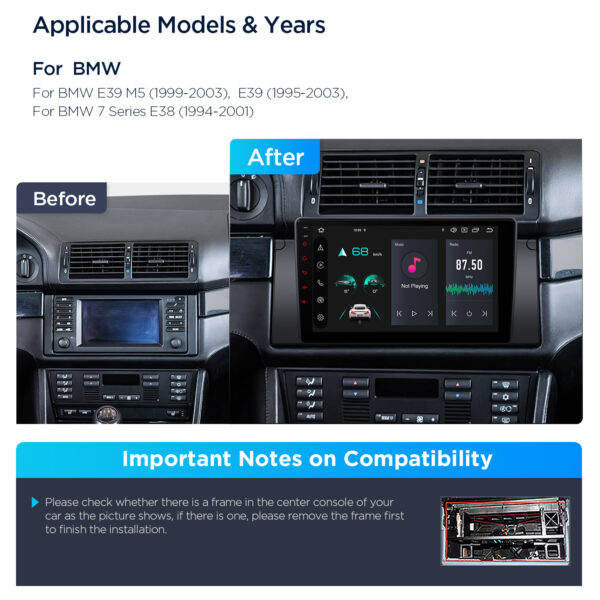

Applicable Models
For BMW E39 M5 (1999-2003), E39 (1995-2003), 7 Series E38 (1994-2001)
Note: This unit does not play discs.Â

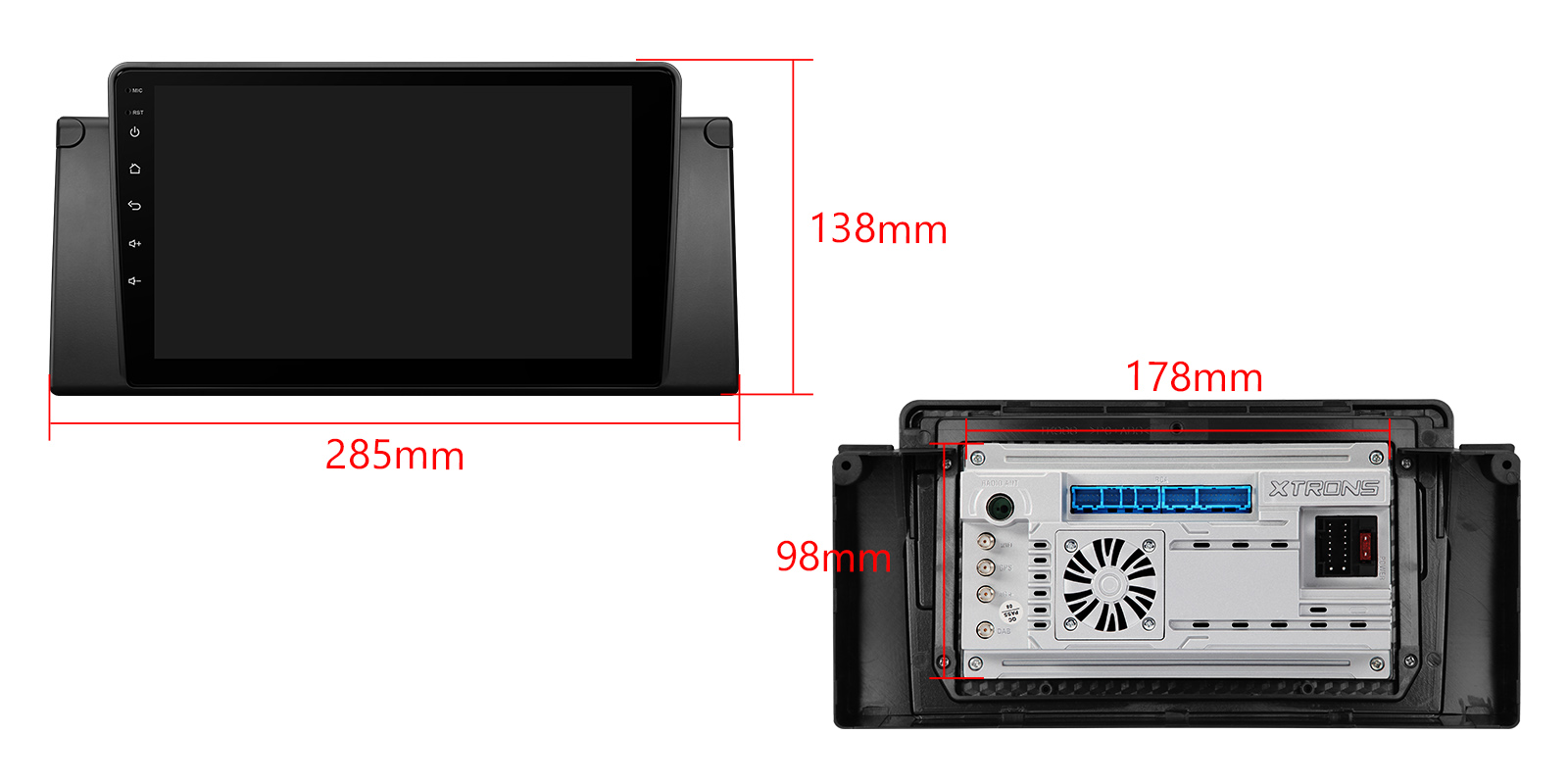

Face Panel: 285x138mm
Although we have made every effort to ensure this unit will be compatible with the listed vehicles, please check the year, dimensions and shape of the centre console of your vehicles before purchasing.

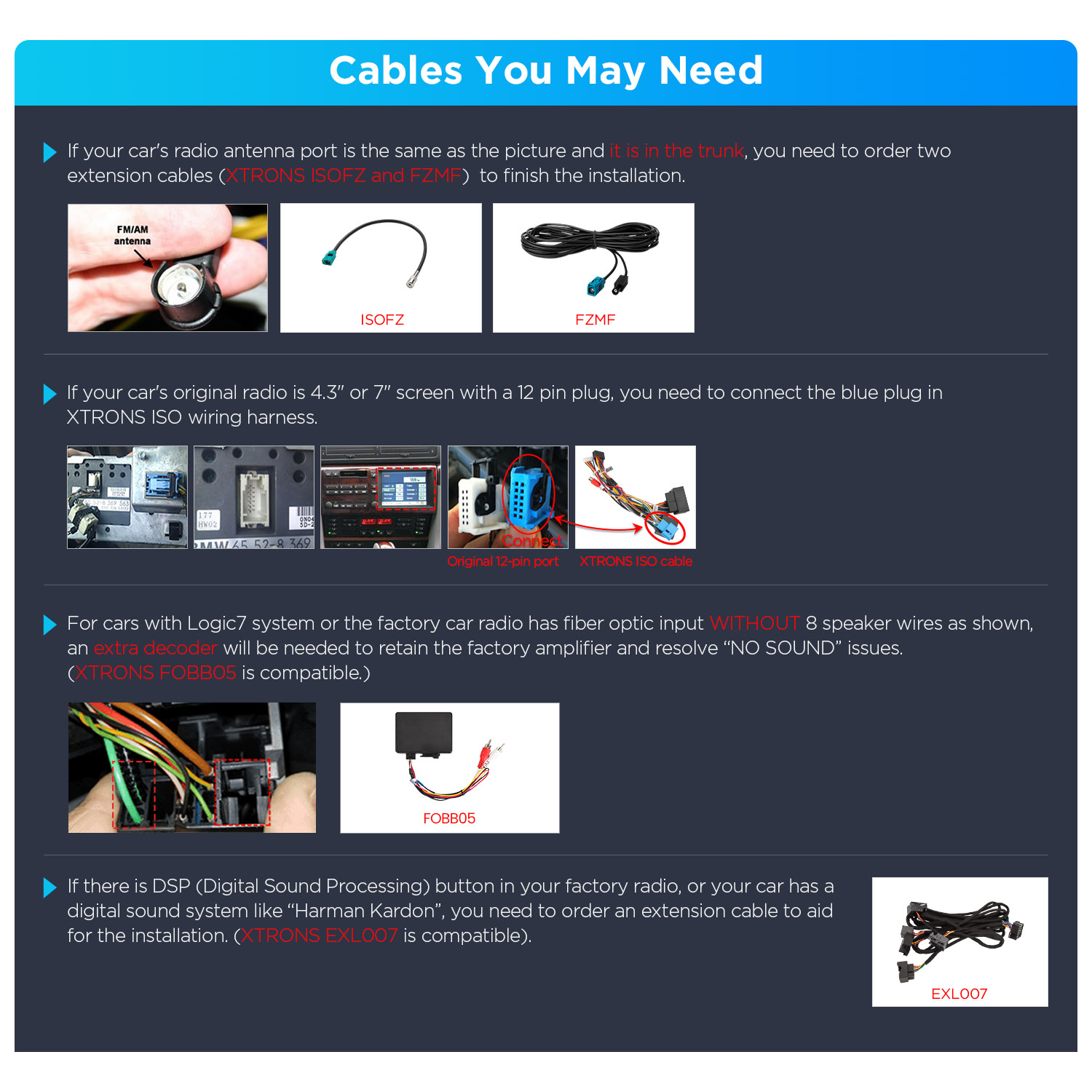

Cables You May Need:
- Please check whether your car's radio antenna port is in the trunk. If it is, you will need two radio antenna extension cables to finish the installation. (XTRONS ISOFZ and FZMF)
- If your car's original radio has a 4.3" or 7" screen with a 12 pin plug, you need to connect the blue plug in XTRONS ISO wiring harness.
- For cars with Logic7 system or the factory car radio has fiber optic input WITHOUT 8 speaker wires as shown, an extra decoder will be needed to retain the factory amplifier and resolve "NO SOUND" issues. (XTRONS FOBB05 is compatible.)
- If there is DSP (Digital Sound Processing) button in your factory radio, or your car has a digital sound system like "Harman Kardon", you need to order an extension cable to aid for the installation. (XTRONS EXL007 is compatible).
IMPORTANT NOTE:
- Please check whether there is a frame in the centre console of your car. If so, please remove the frame before installing the unit.
