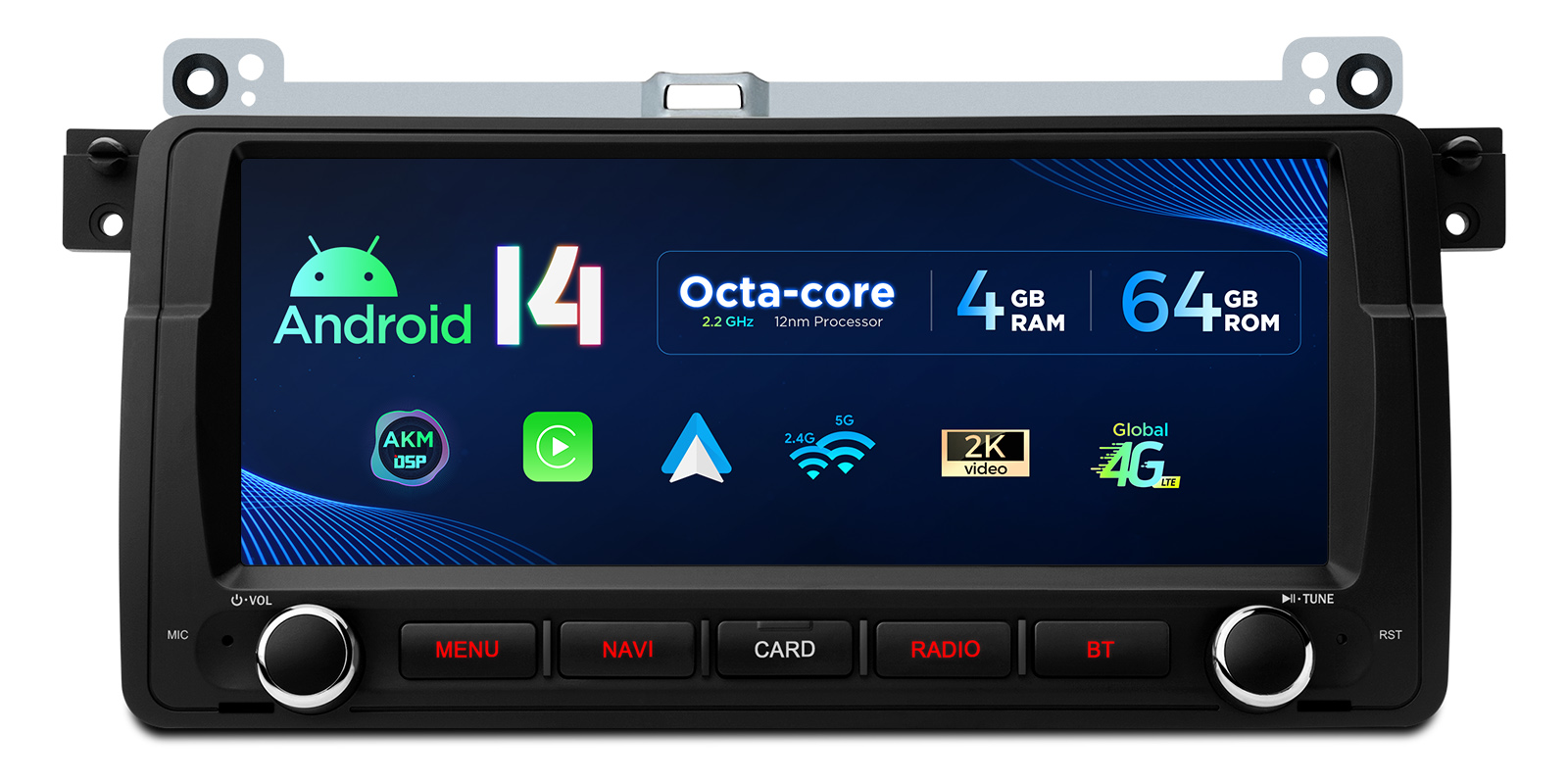

Vehicle Compatibility
DESIGNED FOR BMW/Rover/MG VEHICLES

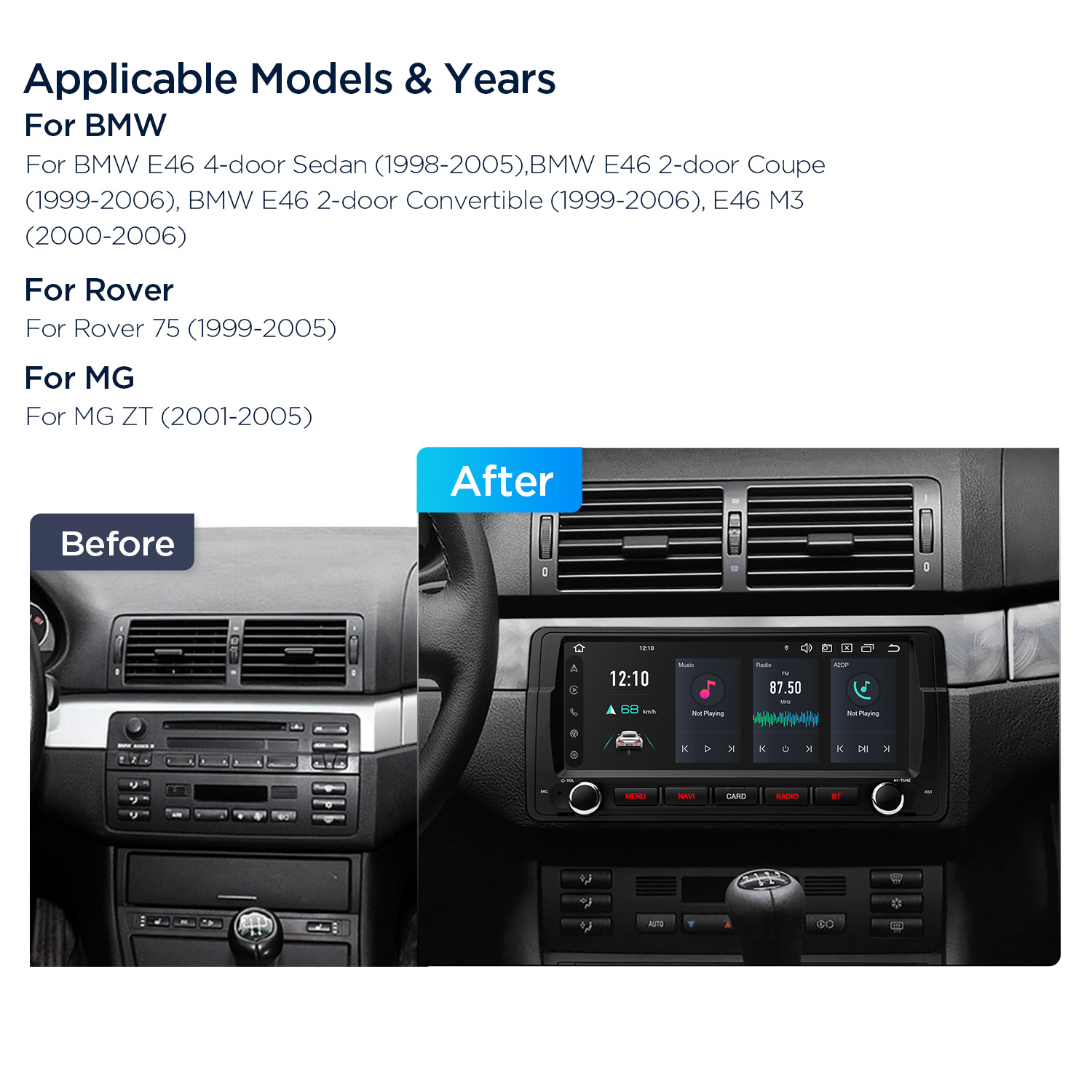

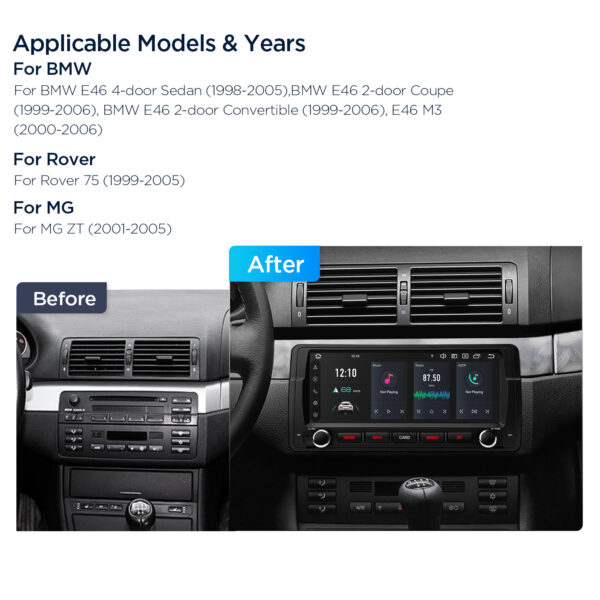

Applicable Models & Years
For BMW E46 4-door Sedan (1998-2005), E46 2-door Coupe (1999-2006), For E46 2-door Convertible (1999-2006), E46 5-door Touring (1999-2005), For E46 3-door Hatchback (2000-2004), E46 M3 (2000-2006)
For Rover 75 (1999-2005)
For MG ZT (2001-2005)
Note: This unit doesn't play discs.Â

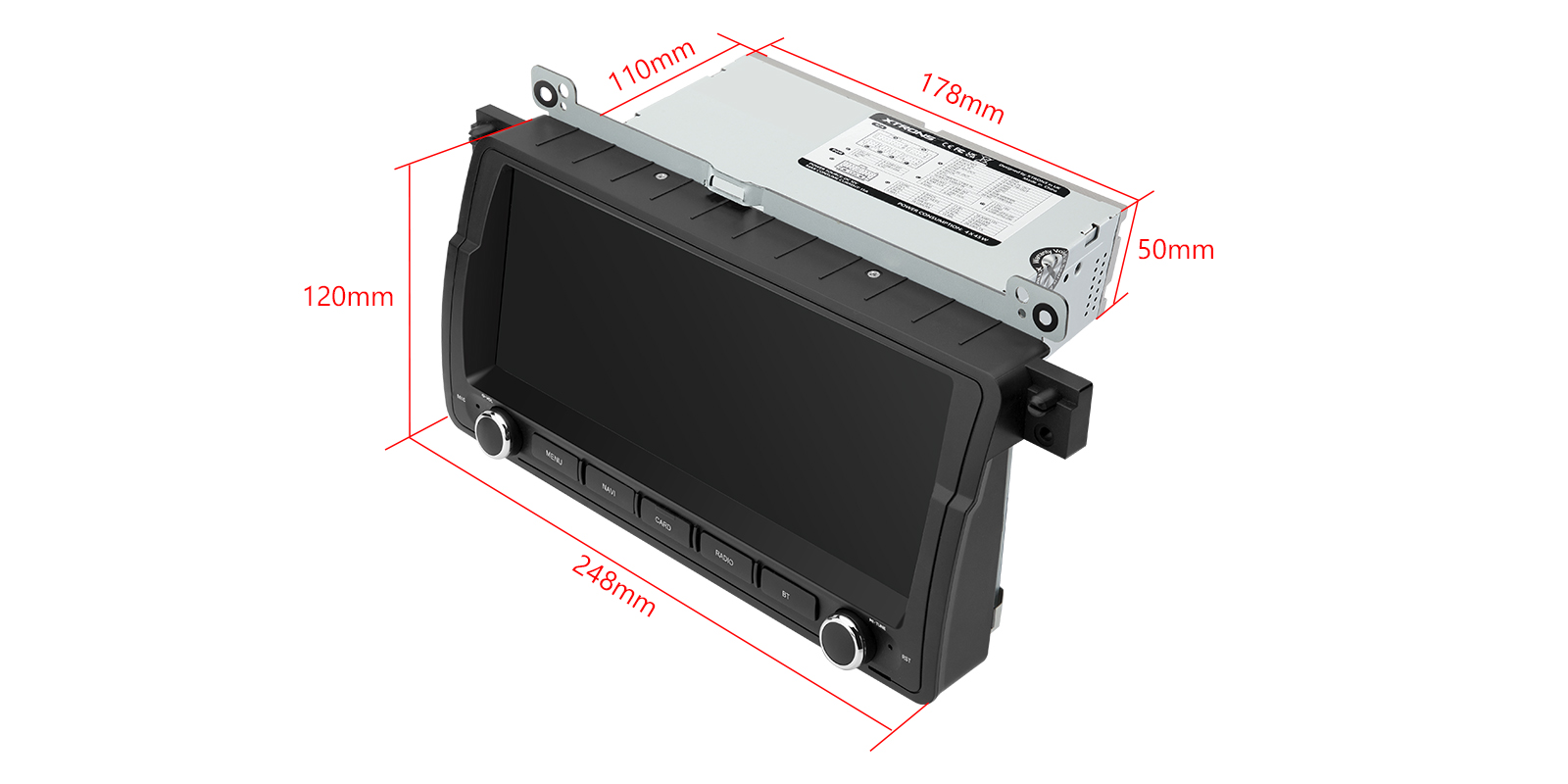

Face Panel: 248x119mm
Although we have made every effort to ensure this unit will be compatible with the listed vehicles, please check the year, dimensions and shape of the centre console of your vehicle before purchasing.

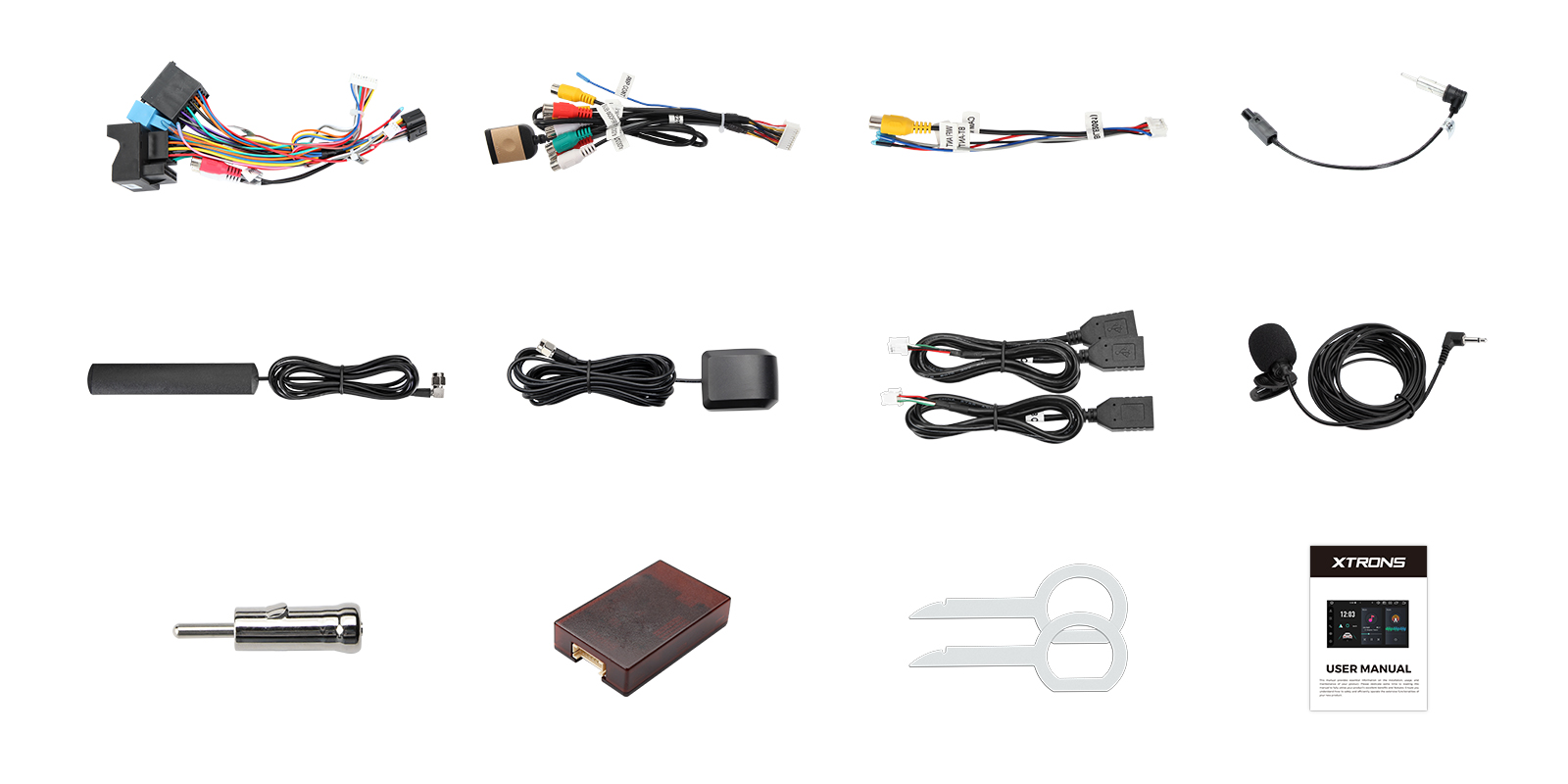

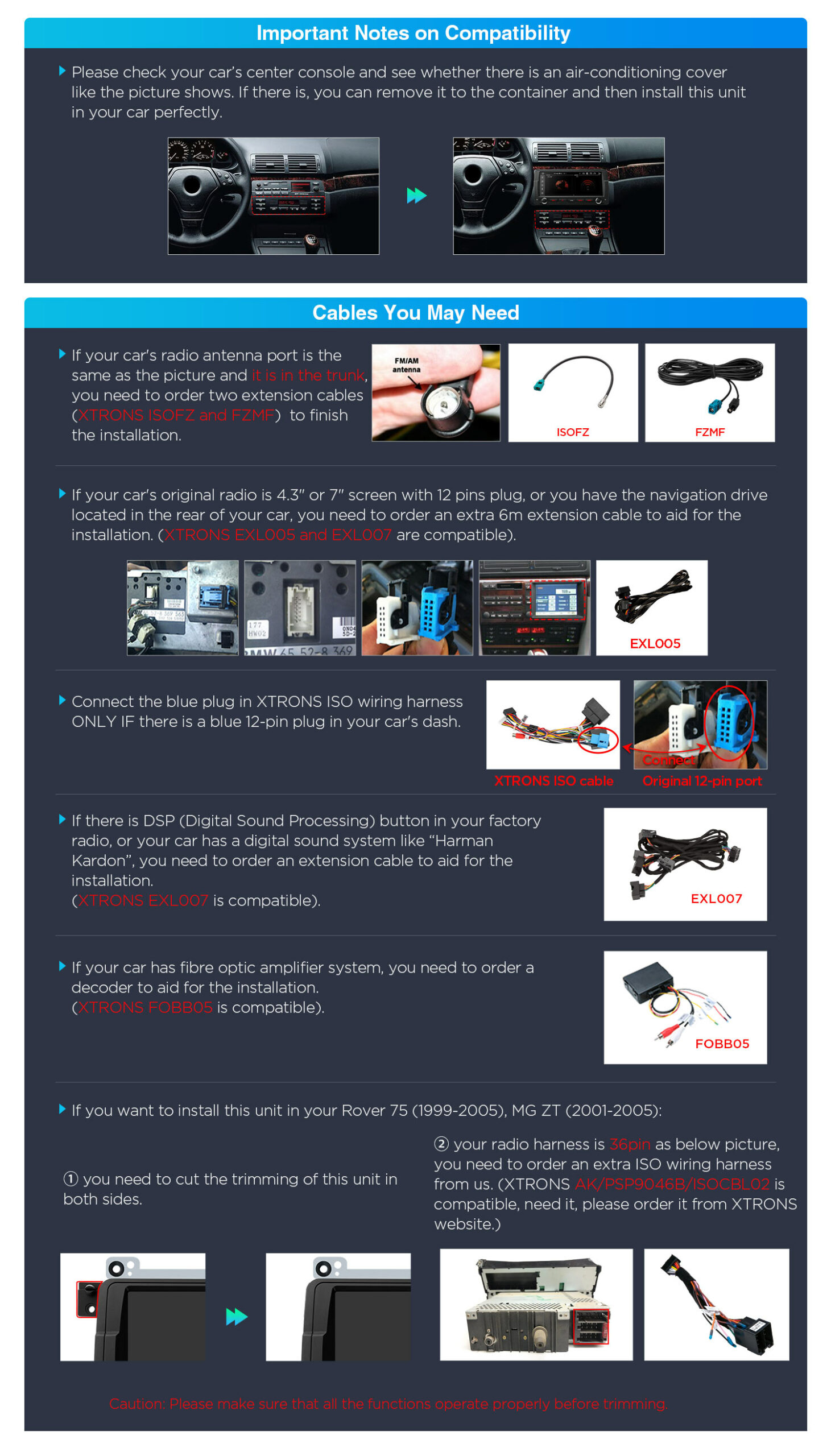

Cables You May Need:
- If your car's radio antenna port is the same as the picture and it is in the trunk, you will need two extension cables (XTRONS ISOFZ and FZMF) to finish the installation.Â
- If your car's original radio has a 4.3" or 7" screen with a 12 pin plug, or you have the navigation drive located in the rear of your car, you will need to order an extra 6m extension cable to aid the installation. (XTRONS EXL005, EXL007 are compatible)
- Connect the blue plug in XTRONS ISO wiring harness ONLY IF there is a blue 12-pin plug in your car's dash.
- For cars with Logic7 system or the factory car radio has fiber optic input WIRHOUT 8 speaker wires as shown, an extra decoder will be needed to retain the factory amplifier and resolve "NO SOUND" issues. (XTRONS FOBB05 is compatible.)
- If there is a DSP (Digital Sound Processing) button in your factory radio, or your car has a digital sound system such as "Harman Kardon", you will need an extension cable to aid the installation. (XTRONS EXL007 is compatible)
- If you want to install this unit in your Rover 75 (1999-2005), MG ZT (2001-2005), you need to cut the trimming of this unit in both sides. Also, if your radio harness is 36pin, you will need to order an extra ISO wiring harness. (XTRONS AK/PSP9046B/ISOCBL02 is compatible) Caution:Â Please make sure that all the functions operate properly before trimming.Â
- Please check your car's centre console and see whether there is an air-conditioning cover like the picture shows. If there is, you can remove it to the container and then install this unit in your car perfectly.
